Celeron® J4125 Quad Cores Industrial Itx Motherboard 6 COM 2 LAN Fanless

Name: Celeron J4125 Quad Cores Industrial Itx Motherboard 6 COM 2 LAN Fanless
Brand: VEGASHINE / OEM
Price: 1 USD

Celeron® J4125 Quad Cores Industrial Itx Motherboard 6 COM 2 LAN Fanless Manufactures

Brand Name : VEGASHINE / OEM

Model Number : ITX-Z6442D-J4125

Place of Origin : Shenzhen China

MOQ : 1 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 units per Month

Delivery Time : 3 to 10 work days

Packaging Details : Carton

CPU : Intel® Celeron® J4125 quad cores

RAM : Support 1*SO-DIMM DDR4

Ethernet : 2*Gigabit LAN

Display : Support VGA+HD-MI + LVDS/EDP Triple Display

COM : 6*COM

Size : 170 x 170 mm

Power : DC 12V Power supply

Contact Now

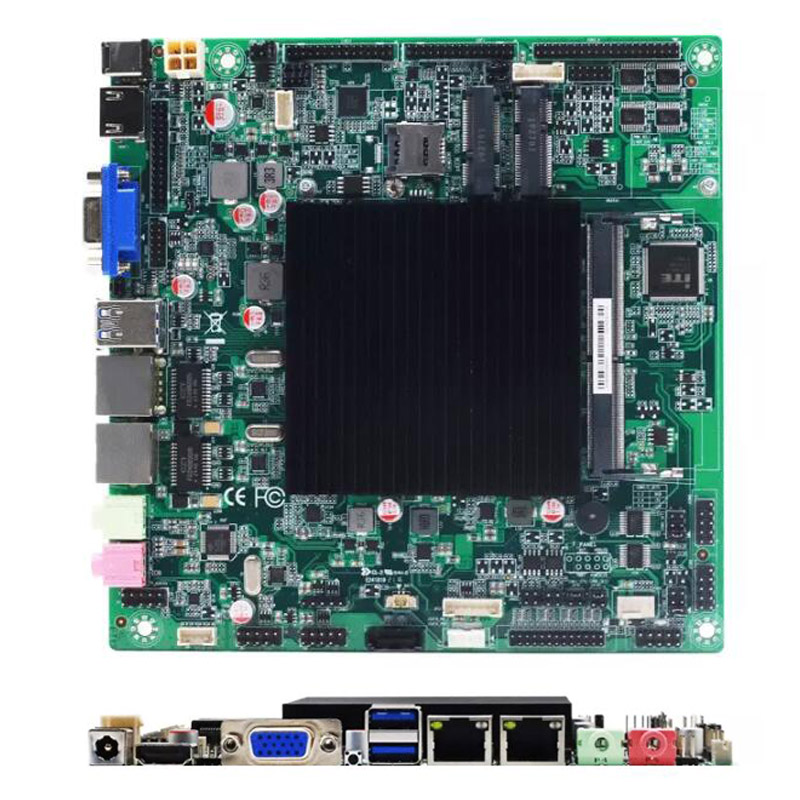

Celeron® J4125 quad cores industrial motherboard 6 COM 2 LAN Fanless Mini-ITX mainboard

Key features

Integrated Intel® Celeron® J4125 quad cores 4 threads 2.0~2.7Ghz

Intel UHD Graphics 600

Support VGA+HD-MI + LVDS/EDP Triple Display(synchrony/asynchrony)

Support 1*SO-DIMM DDR4 2400MHz Max 8GB

Onboard 2* Gigabit LAN

Onboard audio decoder controller

1*SATA 3.0

1*mSATA

1*Mini_PCIe( Support WIFI&BT/4G)

4*USB3.0+4*USB2.0

6*COM

3*USB3.0+ 4*USB2.0

1*SIM Slot

DC 12V Power supply

FANLESS Cooling

Thin MINI-ITX , 170X170mm

Specifications

CPU	Integrated Intel® Celeron® Processor J4125 quad cores 4 threads 2.0~2.7Ghz TDP10W
GPU	Intel UHD Graphics 600
Chipset	Gemini lake
Display output	VGA+HD-MI/EDP2+LVDS/EDP1 Triple Display(synchrony/asynchrony)
Memory	1*SO-DIMM DDR4 2400MHz Max 8GB
Network	Onboard 2* Gigabit LAN
Audio	Onboard audio decoder controller
Audio	Built-in Amplifier out3W@4Ω 1.7W@8Ω max
Storage	1SATA 3.0 1mSATA
Expansion Slot	*Mini_PCIe( Support WIFI&BT/4G)
USB	4USB3.0+4USB2.0
COM	6*COM232, Option: COM2 support 485 (Option: 2COM)
Rear I/O	1DC(φ5.5&2.5mm DC Jack) 1HD-MI 1VGA 2USB3.0 2RJ45 LAN 1CMOS 1HP_OUT 1MIC_IN
Internal I/O	1EDP2 PIN(This pin has no function by default, if you want to use it, we need to update the BIOS firmware) 1VGA_H PIN 1F-AUDIO PIN 1SPEAKER PIN 2F_USB2.0 PIN(can be extended to 4USB2.0) 1F_USB3.0 PIN 1SATA PIN 1SATA_PWR PIN 1JPS2 PIN 1J_PRINT PIN 1F_PANEL PIN 1INVERT PIN 2COM232 PIN( Support 1RS485,COM1 and COM2 support DCD/5V/12V) 1COM_CON PIN(4COM232) 1GPIO PIN 1LVDS PIN/1EDP1 PIN 1SIM Slot 1ATX PIN
BIOS	AMI BIOS
Power	DC+4PIN ATX 12V
Cooling System	FANLESS Cooling
Operating temperature	-20℃ ~ +60℃
storage temperature	-40℃ ~ +85℃
Working humidity	0% ~ 90% relative humidity, no condensation
Storage humidity	0% ~ 90% relative humidity, no condensation
OS	Windows 10 Linux
Form Factor	170X170MM Thin MINI-ITX
Weight	0.5KG
