Name: Quad Core J1900 Nano Size Firewall Computer Motherboard Network Security 4 LAN
Brand: VEGASHINE / OEM
Price: 1 USD

Brand Name : VEGASHINE / OEM

Model Number : FW-PB44-BT-J1900

Place of Origin : Shenzhen China

MOQ : 1 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 units per Month

Delivery Time : 3 to 10 work days

Packaging Details : Carton

CPU : Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42Ghz

RAM : Single channel DDR3L 1066/1333MHz, up to 8GB ram

Display : HDMI

Ethernet : 4*Intel I211AT

COM : 1*RJ45 interface RS-232

USB : 1*USB 2.0, 1*USB3.0

Size : 120 x 120 mm

Power : DC12V

Contact Now

Quad cores J1900 network security motherboard 4 lan nano firewall computer Motherboard

Key features

Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42Ghz processor

Single channel DDR3L 1066/1333MHz, Max 8GB ram

1*HDMI

4*Intel I211AT

1*USB 2.0, 1*USB3.0

1*RJ45 interface RS-232

1*SATAII connector

On board 32/64/128G EMMMC

1*Mini-PCIe M-SATA Scoket

Aluminum alloy heat sink with fan

Single input DC power supply, DC12V

Size: 120*120mm

Specifications

Processor	CPU	Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.00~2.42Ghz processor
	CPU package	BGA
	Chipset	Support Baytrail-I/D/M serial Processor
	BIOS	EFI BIOS
Memory	Technology framework	Singel channel DDR3 1066/1333/1600MHz
	Capacity	Max support 8GB Ram
	socket	DDR3 SODIMM 204 Socket
Video	Graphic controller	Intel HD Graphics
Video	HDMI	HDMI Resolution maximum 1920x1080

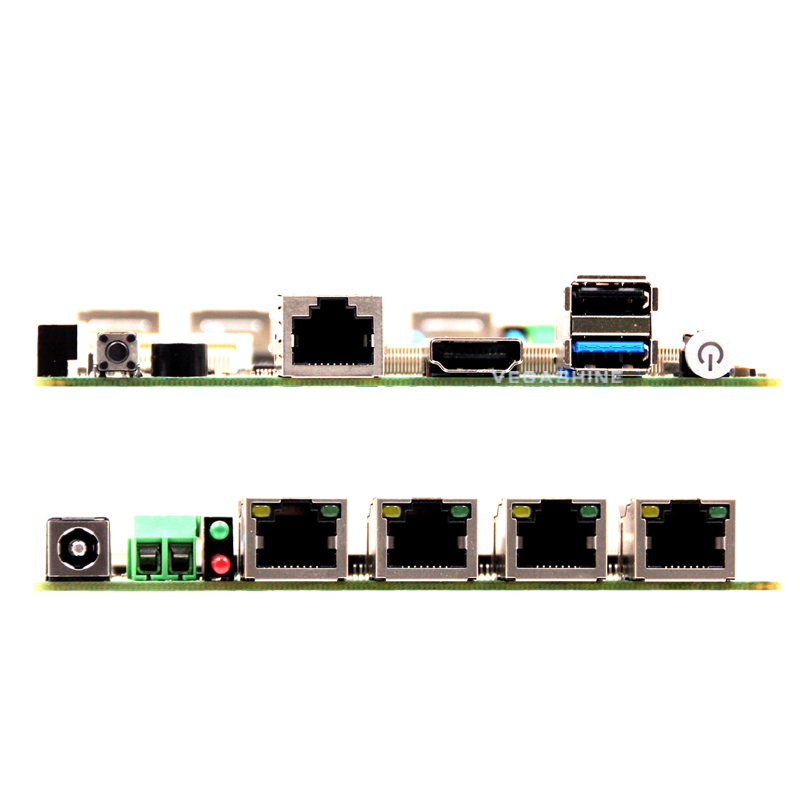

I/O panel	Interface Port	1HDMI 2USB 4LAN 1 Quick Power On button with indicator 1 * Restart button
Network	Controller	4*Intel I211AT high performance Gigabit Ethernet Port,RJ45 Port
Hardware monitoring	Watchdog timer	0-255 seconds,provide watchdog routine
Hardware monitoring	Cooler	Aluminum alloy heat sink with fan
Input/Output Interface	USB	1USB2.0 1USB3.0 Max support +5V/1A
	COM	1*RJ45 port RS232 or RS485(optional)
	PS/2	NO
Extended bus	Mini-PCle	1*Mini-PCIe slot ,support PCIe and USB equipment
storage	SATA	1*SATAII connector, Maximum transmission rate 3Gb/s
	EMMC	On board 32/64/128G EMMMC
	M-SATA	1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s
Power Supply	Power Type	Single-input DC power supply, DC12V power supply
Power Supply	Power consumption	20W
Work environment	Working temperature	-20℃ ~ +60℃
	Storage temperature	-40℃ ~ +85℃
	Working humidity	0% ~ 90%(non-condensing)
	Storage humidity	0% ~ 90%(non-condensing)
Support system		Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.
Size	size	120 *120 mm
Size	weight	0.5KG
